Minimum Order Quantity: 1 | Unit of Measures: Piece/Pieces

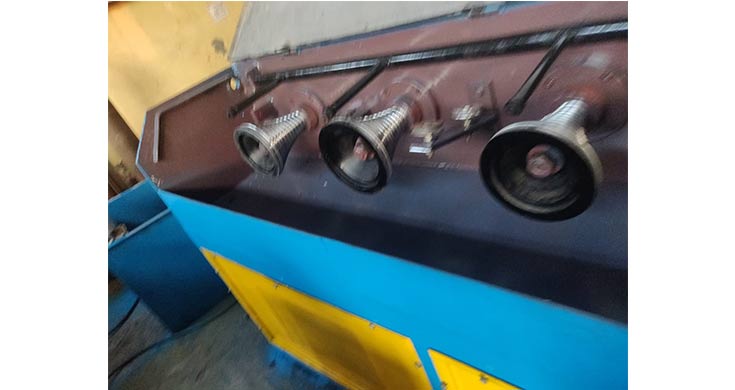

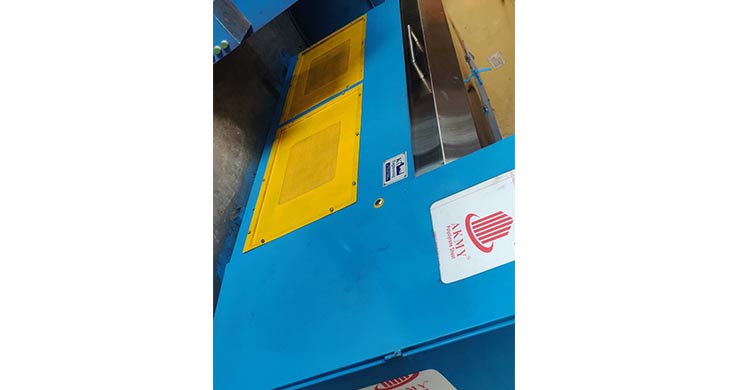

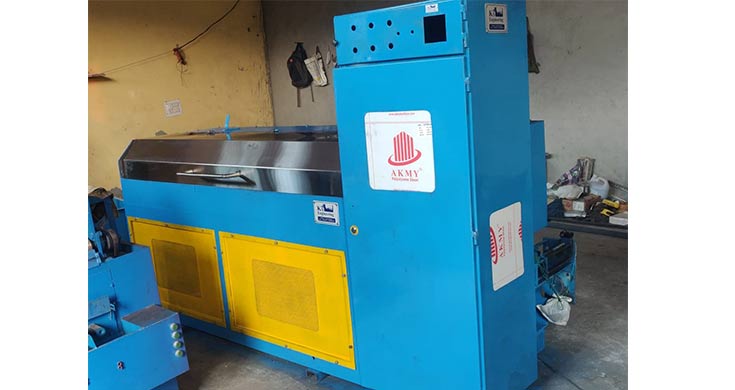

Extensively used for providing copper wire to make barbed wire, wire mesh and many more, this technologically advanced Copper Fine Wire Drawing Machine is widely demanded amongst clients for its hassle free operation. This machine is manufactured using supreme grade components with the utilization of ultra-modern technology in tune with defined industry standards. Further, this Copper Fine Wire Drawing Machine is available in numerous technical specifications as per the varied needs of the clients at a competitive price.
Features:
1. Trouble-free performance
2. High operational fluency
3. Sturdy construction
4. Longer service life
Specifications:
| For Copper Wire |
KSE 309/21 |
KSE 308/21 |
||||
|---|---|---|---|---|---|---|
| Inlet Size | 1.60mm | 1.40mm | 1.00mm | 0.80mm | 0.60mm | |
| Outlet Size | 0.29mm | 0.25mm | 0.18mm | 0.14mm | 0.10mm | |
| For Aluminum Wire | ||||||
| Inlet Size | 1.60mm | 1.40mm | 1.00mm | 0.80mm | 0.60mm | |
| Outlet Size | 0.29mm | 0.25mm | 0.18mm | 0.14mm | 0.10mm | |
| For MS Wire | ||||||
| Inlet Size | 1.40mm | 1.20mm | 1.00mm | 0.80mm | 0.60mm | |
| Outlet Size | 0.25mm | 0.20mm | 0.18mm | 0.14mm | 0.10mm | |
| For Hi-Carbon Wire | ||||||
| Inlet Size | 1.20mm | 1.00mm | 0.80mm | 0.60mm | 0.40mm | |
| Outlet Size | 0.30mm | 0.25mm | 0.19mm | 0.15mm | 0.10mm | |
| For Stainless Steel Wire / Nicron Wire | ||||||
| Inlet Size | 1.20mm | 1.00mm | 0.80mm | 0.60mm | 0.40mm | |
| Outlet Size | 0.30mm | 0.25mm | 0.19mm | 0.15mm | 0.10mm | |
| Type | 17DHA | 18DHA |
|---|---|---|
| Input Wire | ||
| Output Wire | ||
| Maximum Line Speed | ||
| Maximum Number Of Dies | ||
| Mechanical elongation | ||
| Drawing Capstan | ||
| Take-up reel | ||
| Final capstan | ||
| Drawing/take-up motor | ||
| Power supply | ||
| Brake | ||
| Volume of lubricant | ||
| Lubrication of wire drawing | ||
| Dimensions (L x W x H) | ||
| Weigh |
